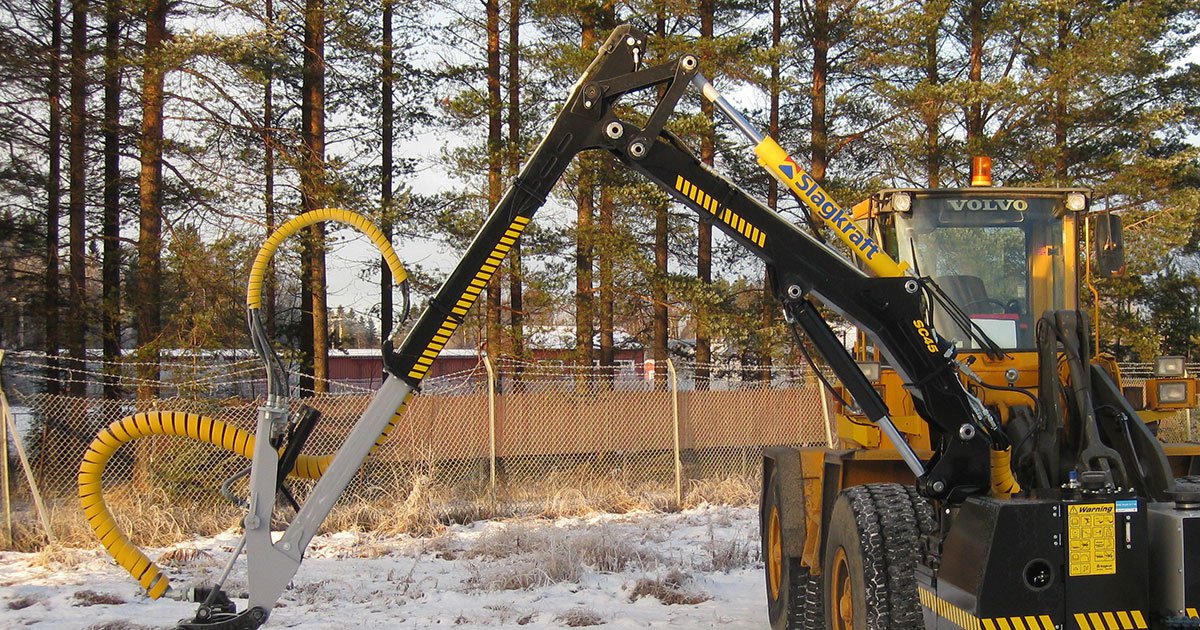

Slagkraft cranes SC45


A small and flexible crane with a reach of 6,3m with a SH150. The reach of Slagkraft cranes is calculated from the centre of the crane pillar to the outermost cutting link.

Download PDF

Technical data

Max. reach 6.343 mm (SH150)
Slew system Twin rack slewing motor
Slew angle 210° or 380°
Boom extension (telescope) 1.250 mm
Reccomended flow 60-80 l/min
Working pressure 190 bar
Weight including oil 740 kg
