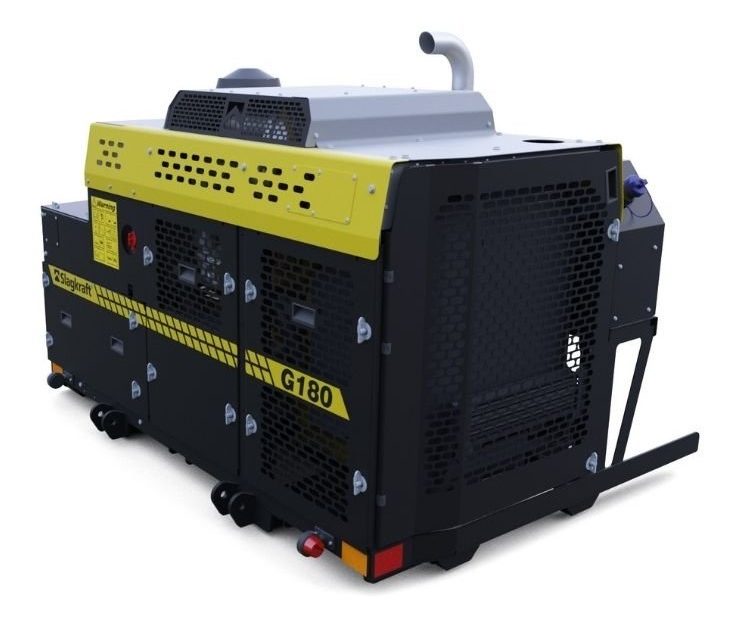

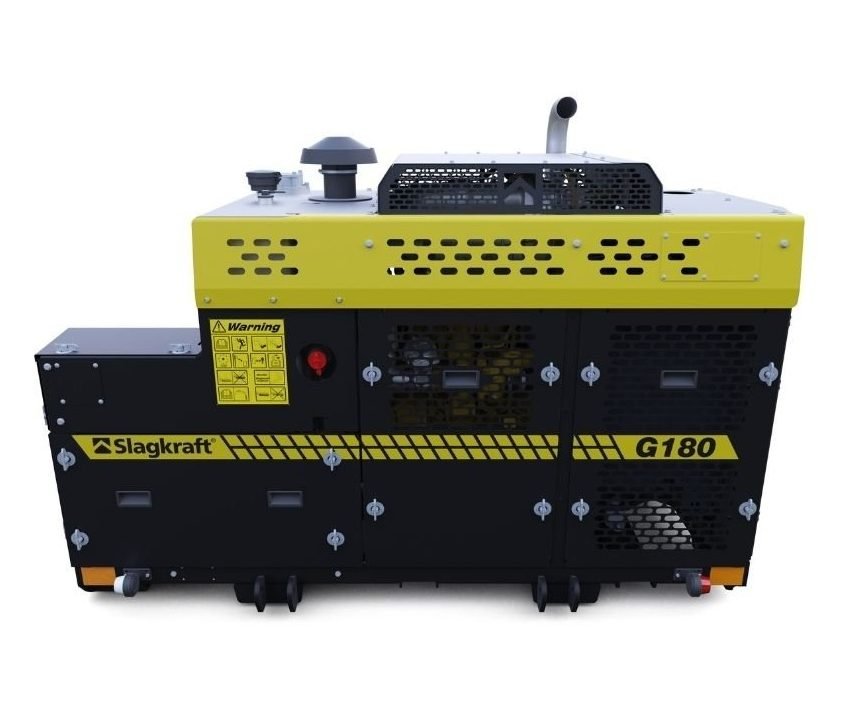

G180

A robust power pack for use on graders



Based on the same technology and with the same performance as the W180, the G180 is side-mounted on graders. The heart of the power pack is a Caterpillar C4.4 diesel engine that delivers 176 hp (129 kW) and 750 Nm (at 1400 rpm). The engine is fuel-efficient and meets EU Stage V emission requirements.

Technical specifications:

G180
Diesel engine
Manufacturer
CATERPILLAR
Model
C4.4
Fulfil exhaust emission levelregulation
STEG V
Cylinders
4
Displacement (litre)
4,4
Injection system
Electronic
Fuel intake system
Twin turbocharger with intercooler
Max power (kW / hp /rpm)
129,4 / 176 / 2200
Max torque (Nm / rpm)
750 / 1400
Hydraulic system
Pump mower
Rexroth A20VO95
Max pressure (bar)
380
Filter
10 μm absolute
Crane pump
Rexroth A20VO60
Max pressure (bar)
260
Control valve
Parker L90LS
Electric system
Voltage
24V DC
Battery capacity
2x60Ah
Alternator
85A
Control system
Control units
Parker IQAN
Control lever
5 pin
Alarm functions
Oil pressure, engine temperature, charging,engine function, emission control, hydraulic oil level, hydraulic oil temperature,fuel level
Start – stop of mower
Proportional with ramp function
Throttle control
Electronic
Weight and volume
Weight (kg)
1700
Diesel tank (litres)
200
DEF tank (litres)
15
Hydraulic oil tank (litres)
160
Hydraulic system (litres)
190
