SC7

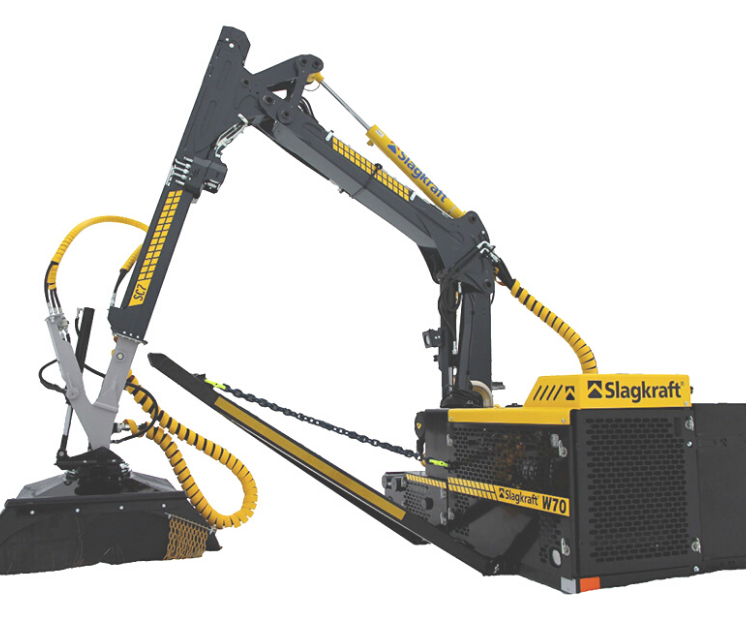

Cranab’s latest crane generation



A modern crane with a high crane pillar, short main boom, protected hoses and a maximum reach of 7,3 m. For clearing minor roads.
The reach of Slagkraft cranes is calculated from the centre of the crane pillar to the outermost cutting link.

Technical specifications:

SC7
Technical data
Max. reach
7.390 (SH170)
Slew system
Twin slew system
Slew angle
370°
Boom extension (telescope)
1.700 mm
Reccomended flow
60-110 l/min
Working pressure
235 bar
Weight including oil
1.340 kg
