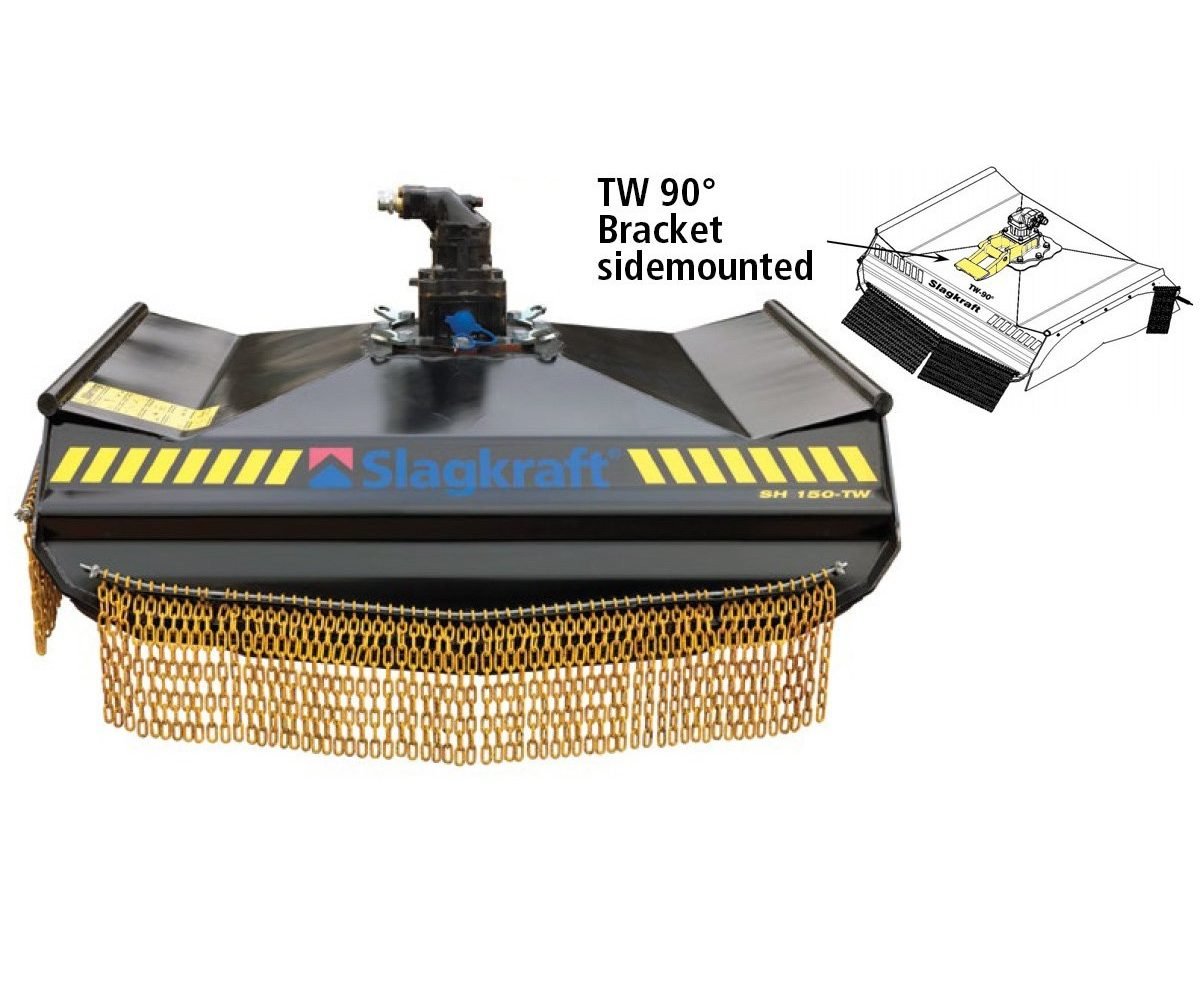

Offroad Chain mower SH150-80-TW-90°

The SH model is used for clearing alongside roads together with our power packs and cranes.
“TW” means that the flail has two open sides, ie: two-way flail.

Turning of hub of 90° in relation to standard version. This turning is used mainly on backhoes and excavators. Other turning may also occur.

Technical specifications:

SH150-80-TW-90°
Technical data
Working width
1.500 mm
Weight
540 kg
Hydraulic motor
80 cc
Hydraulic oil pressure
Min 210 bar / max 380 bar
Hydraulic oil flow Min.
100 l/min
Hydraulic oil flow Ideal
130 l/min
Hydraulic oil flow Max.
150 l/min
