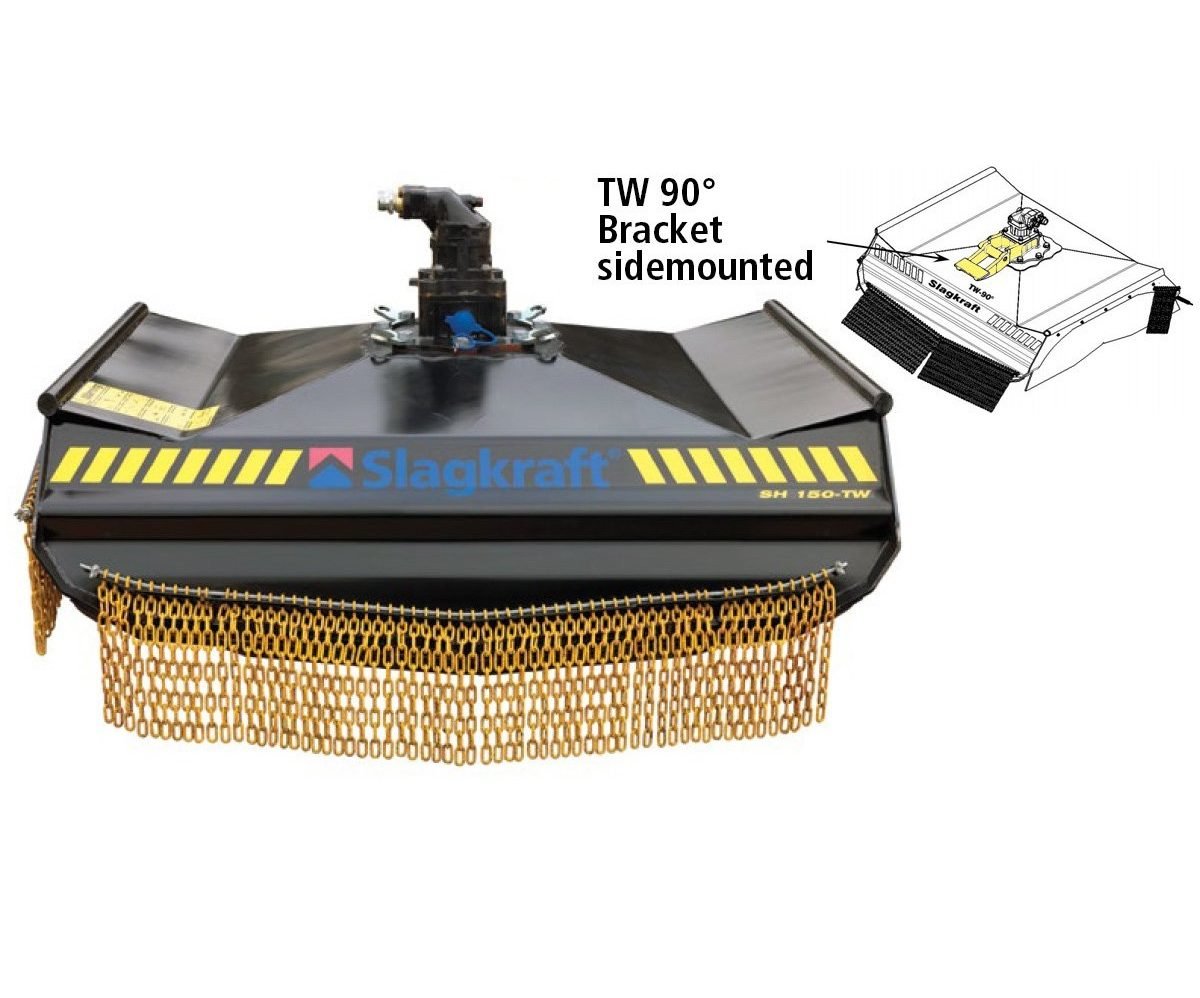

TW - Off-road chain mowers

The TW model is intended for clearance in terrain, power-line corridors and other demanding surroundings. Because it is open on both sides, sweeping back-and-forth motions are possible. They can be installed on excavators, backhoes and other types of carrier machines.

The TW mower is available in two models with a working width of 1500 mm and for different hydraulic motor options.

Technical specifications:

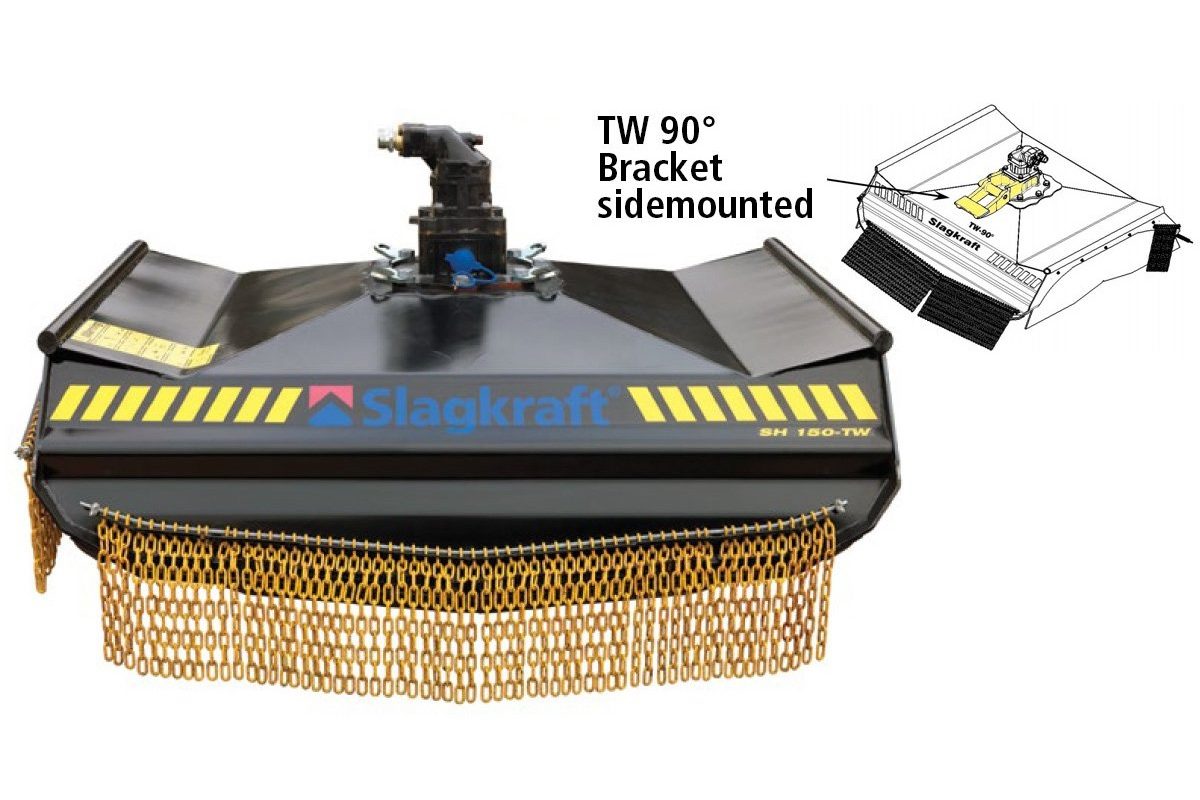

SH150-60-TW-90°
sh150 60 tw 90 f aspect ratio 600 400
Technical data
Working width
1.500 mm
Weight
530 kg
Hydraulic motor
60 cc
Hydraulic oil pressure
Min 210 bar / max 380 bar
Hydraulic oil flow Min.
80 l/min
Hydraulic oil flow Ideal
95 l/min
Hydraulic oil flow Max.
110 l/min

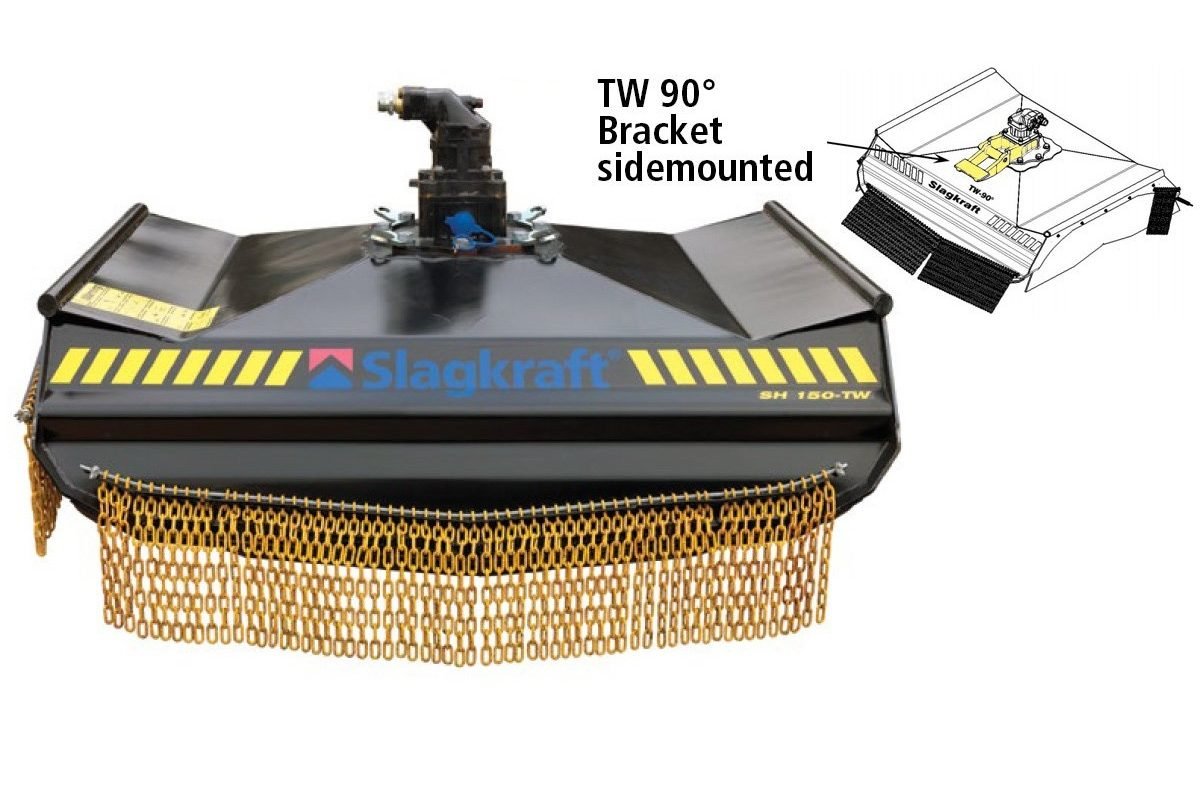

SH150-80-TW-90°
sh150 80 tw 90 f aspect ratio 600 400
Technical data
Working width
1.500 mm
Weight
540 kg
Hydraulic motor
80 cc
Hydraulic oil pressure
Min 210 bar / max 380 bar
Hydraulic oil flow Min.
100 l/min
Hydraulic oil flow Ideal
130 l/min
Hydraulic oil flow Max.
150 l/min
