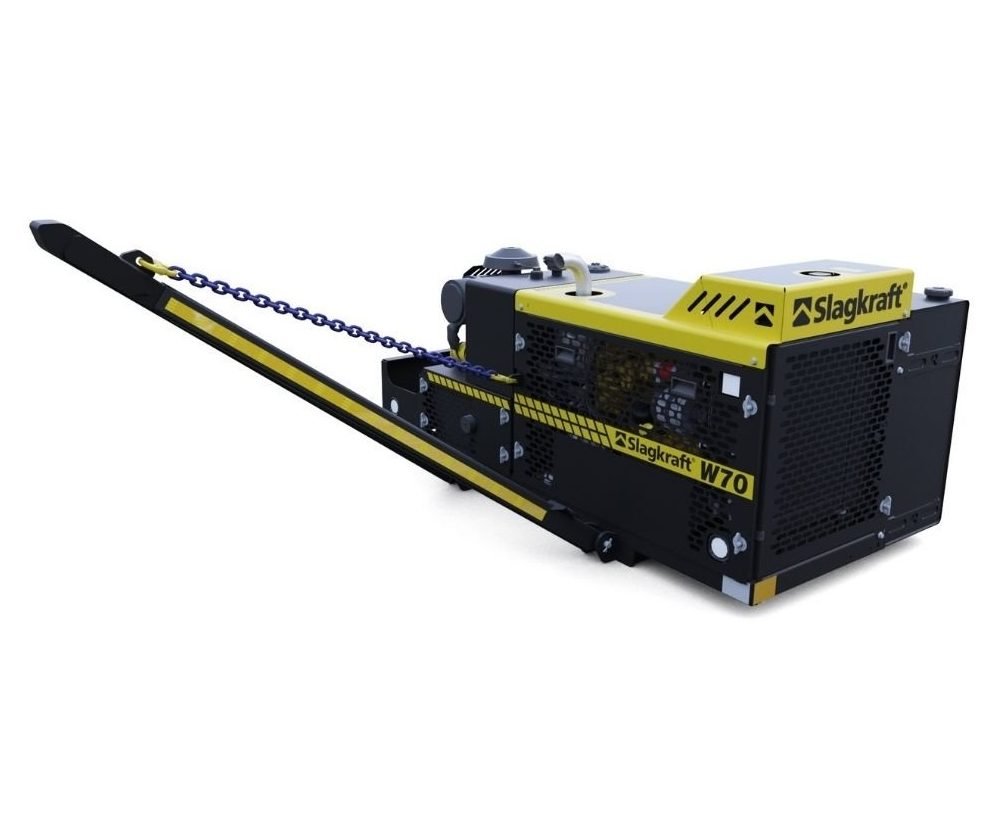

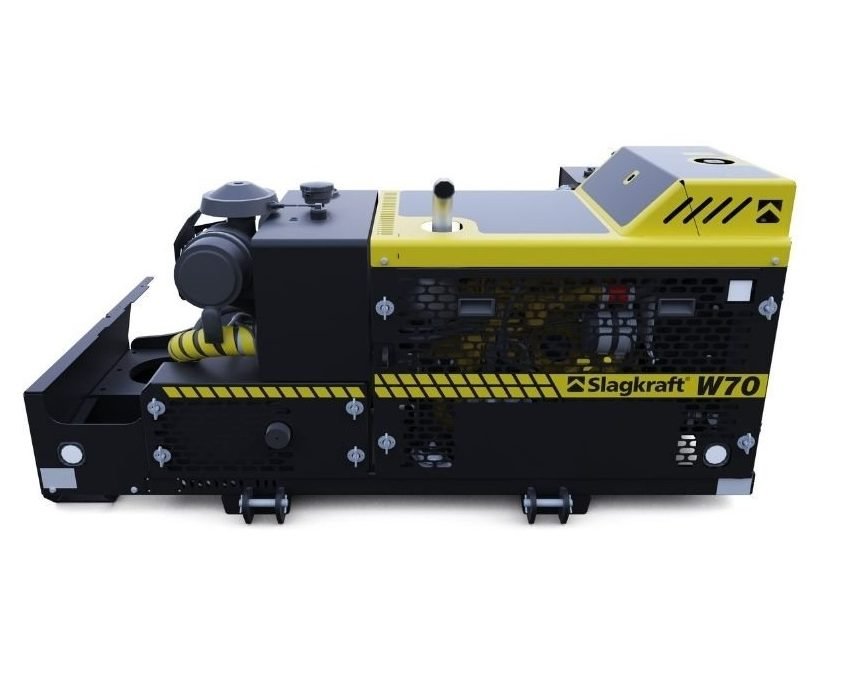

W70

A power pack for slightly smaller machines

Our smallest power pack with excellent power and performance. The W70 is powered by a Cat C3.6 diesel engine and meets EU Stage V emission requirements. The engine has no DEF system and requires no DEF fluid or similar additives as the engine output is 55 kW.

Technical specifications:

W70
Diesel engine
Manufacturer
CATERPILLAR
Model
C3,6
Fulfil exhaust emission levelregulation
STEG V
Cylinders
4
Displacement (litre)
3,62
Injection system
Electronic
Fuel intake system
Turbocharger with intercooler
Max power (kW / hp /rpm)
55,4 / 75,3 / 2400
Max torque (Nm / rpm)
424 / 1200
Hydraulic system
Pump mower
Rexroth A20VO60
Max pressure (bar)
285
Filter
10 μm
Crane pump
Rexroth A20VO60
Max pressure (bar)
250
Control valve
Parker P70LS
Electric system
Voltage
24V DC
Battery capacity
2x60Ah
Alternator
100A
Control system
Control units
Parker IQAN
Control lever
5 pin
Alarm functions
Oil pressure, engine temperature, charging, engine function, emission control, hydraulic oil level, hydraulic oil temperature, fuel level
Start – stop of mower
Proportional with ramp function
Throttle control
Electronic
Weight and volume
Weight (kg)
1400
Diesel tank (litres)
154
Hydraulic oil tank (litres)
104
Hydraulic system (litres)
130
